48V 5KWH | Fusion Lithium | Battery

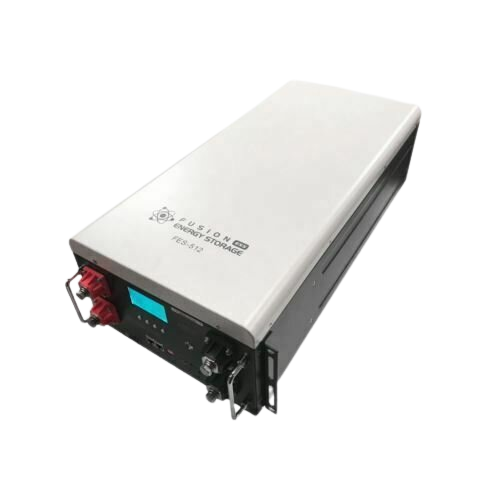

Designed for easy installation into residential, commercial, or utility scale projects. Fusion ESS Lithium Iron Phosphate (LiFePO4) batteries are available as 51.2V-100Ah (5.12 kWh) modules and are designed to be connected in parallel up to 81.92 kWh of storage. Our High-Performance LiFePO4 energy storage system is easy to install, safe, and consistently reliable. It provides the lowest lifetime energy cost for both new solar customers and retrofit customers. Fusion ESS can be integrated with industry standard solar charge controllers, inverters, and energy management systems. Financing solutions are available for any project size.

Phosphate (LiFePO4) battery module is specifically designed for high capacity and high performance residential, commercial, and utility scale energy storage systems. These ESS battery modules can be placed parallel for energy storage systems up to 81.92 kWh of total capacity. These ESS will integrate with any inverter or solar charge controller.

Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership. LiFePO4 batteries are designed for 10,000 cycles at 50% DOD, and 6,000 cycles at 80% DOD, and 2,000 cycles at 95% DOD.

More Energy: Delivers significantly more energy than lead acid batteries, even at high discharge rate while maintaining high energy capacity.

Advanced BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.

Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, and flame retardant additive.

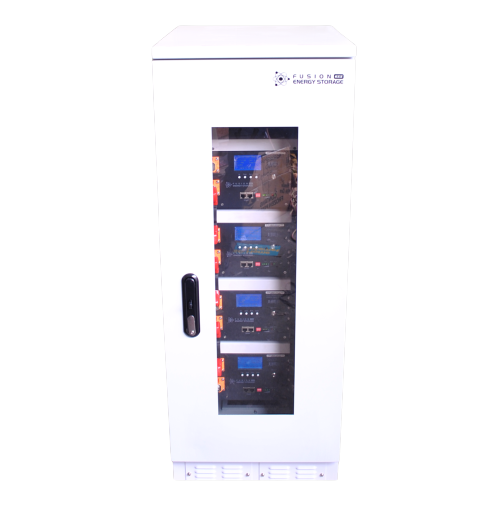

Increased Flexibility: This LiFePO4 battery module is designed to be connected in parallel for applications up to 81.92 kWh. The modules are fitted into a cabinet for ground mount configuration with simply installation.

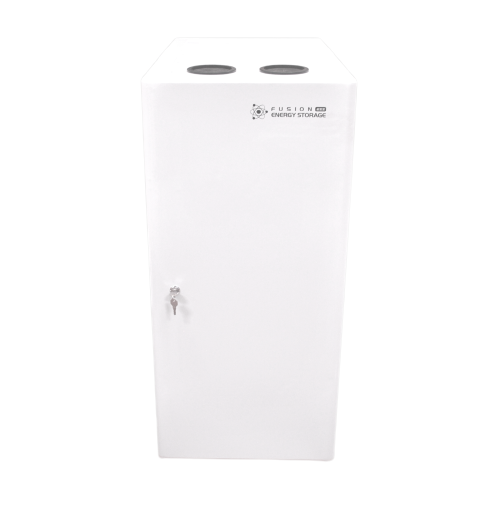

Protective Weatherproof Cabinet: Designed with a secure key lockable door with UV protective glass.

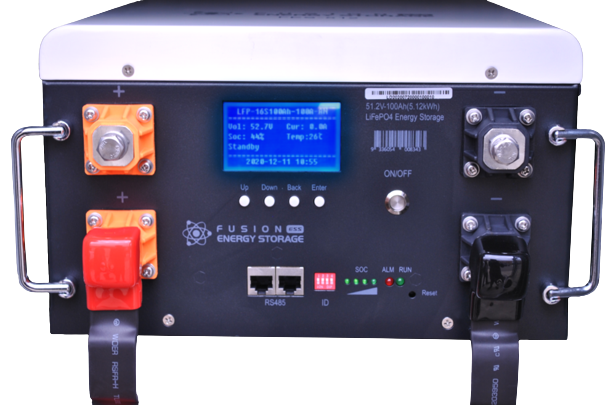

Clear Visual Display: LCD display showing voltage, current, SOC and temperature for each individual module

Please note, this is just the battery - cabinet is sold separately.
