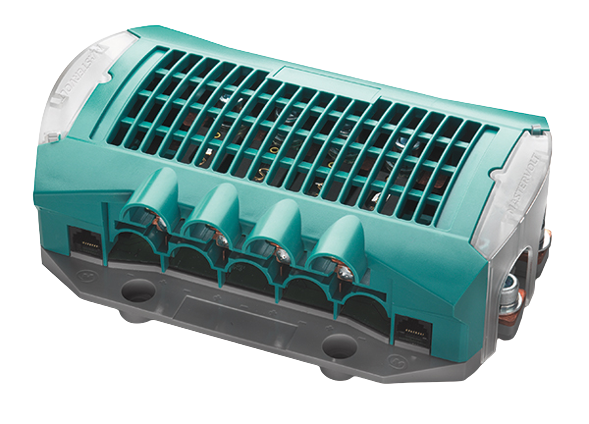

Mastervolt | DC Distribution 500 (77020200)

The DC Distribution 500 is the smallest distribution model available. It connects up to four DC devices, such as a battery charger, inverter, alternator and solar panels.With the plug & play cable, it can be easily connected to the MasterBus network. The MasterView panel gives all fuses logical names, to ensure you receive understandable error notifications (for example battery charger fuse defect).
Other Details:
Dimensions: 5.9"x7.9"x2.5", 150(H) x 216(W) x 65 (D)mm
Weight: 2.6 lbs / 1.2kg
Battery voltage: 12, 24 or 48V DC
Current: 300A continuous / 500A for 5 minutes
MasterBus powering: no
Standard fuses: 80, 80, 125, 160A - ANL type (deviating values can be ordered separately)
Spare fuse: 125A ANL type
Alarm: fuse monitoring
Protection degree: IP21
Delivered with: 5 fuses, hex tool, MasterBus Terminator, MasterBus cable,cable protections for DC connections
