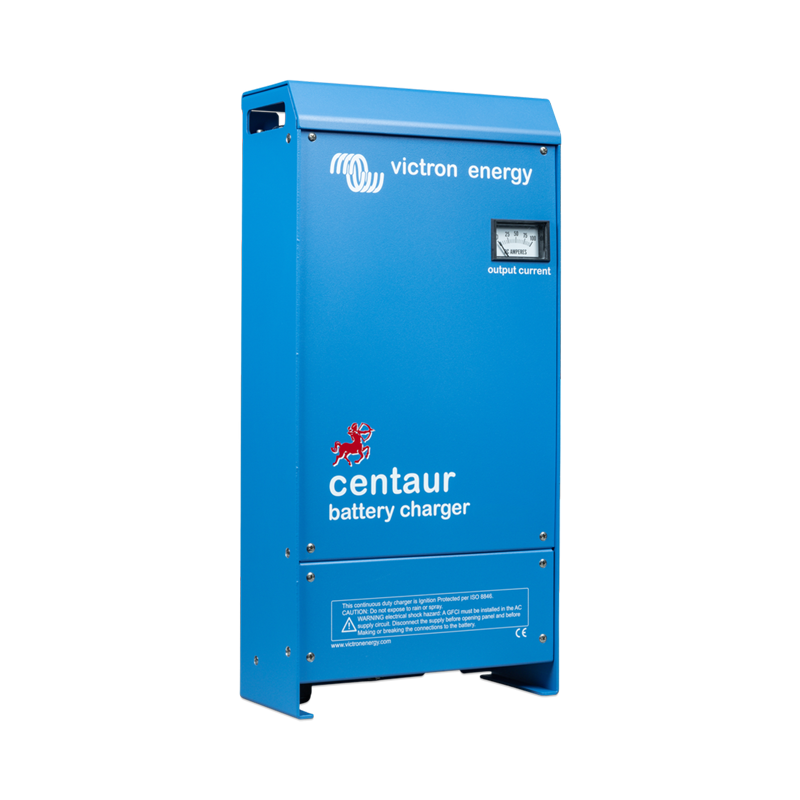

Victron | Centaur Charger | (3) 120-240V

Quality without compromise

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air.

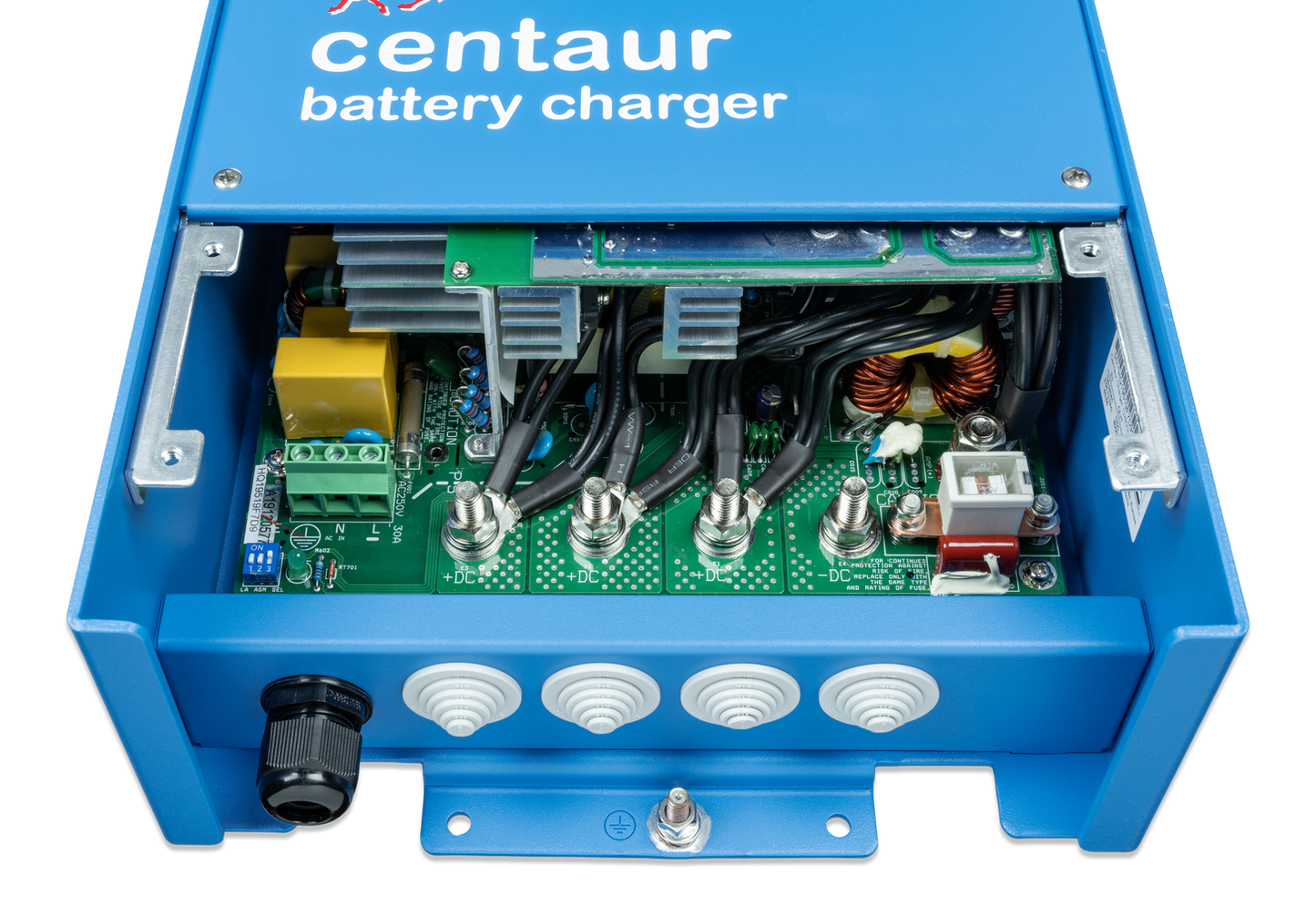

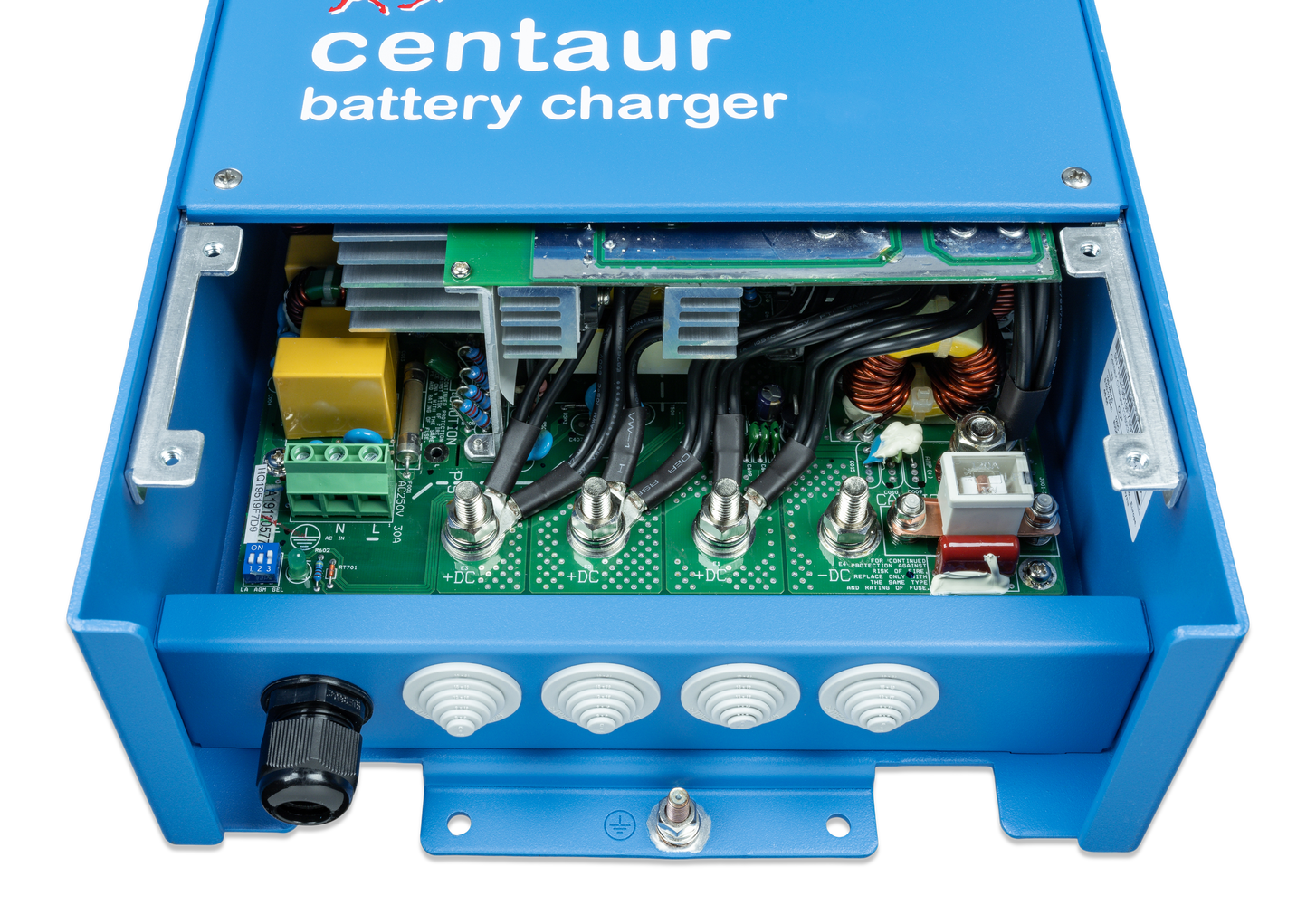

Circuit boards are protected with an acrylic coating for maximum corrosion resistance.

Temperature sensors ensure that the power components will always operate within specified time limits, if needed by automatic reduction of output current. under extreme environmental conditions.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50Hz or 60Hz.

The chargers will also accept a 90-400 V DC supply.

Three outputs that each can supply the full output current

Three isolated outputs to simultaneously charge 3 battery banks. Each output is capable to supply the full rated current.

Three-stage charging, with temperature compensation

The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the time period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with -2mV/degrees celcius per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
